ITEL 12KW IP54 HYBRID INVERTER

ITEL 12KW IP54 HYBRID INVERTER

The Itel 12kW Pro IP54 Hybrid Solar Inverter is a high-capacity energy management system designed for large homes, offices, and commercial solar installations. It intelligently combines solar power, battery storage, and utility grid electricity to ensure continuous and efficient power supply.

Built with advanced MPPT solar tracking technology, the inverter maximizes solar energy production while maintaining stable output for sensitive appliances. Its IP54-rated enclosure protects the internal components from dust and water splashes, making it suitable for demanding environments.

With powerful output capacity, smart monitoring support, and flexible battery compatibility, the Itel 12kW Pro Hybrid inverter is an ideal solution for modern solar energy systems.

Categories: , Brand:

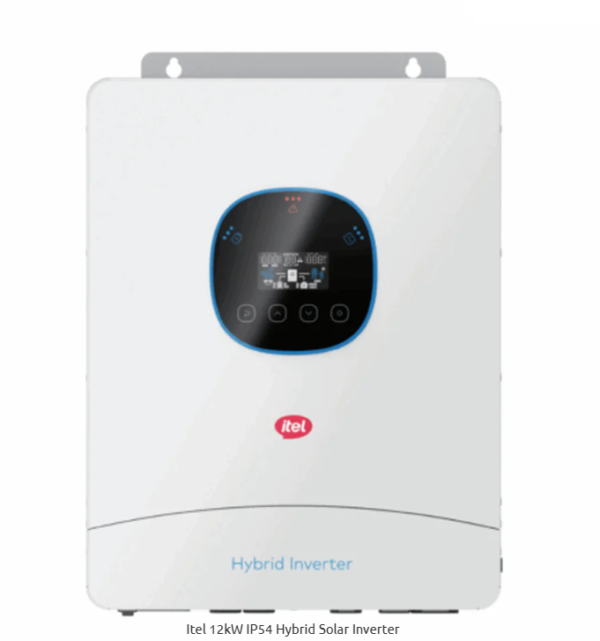

Itel 12kW Pro IP54 Hybrid Solar Inverter



Key Features

  • High Power Capacity (12kW) – Designed for heavy residential and commercial energy loads.
  • Hybrid Energy System – Seamlessly integrates solar panels, batteries, and grid power.
  • Dual MPPT Technology – Optimizes solar panel performance even in changing sunlight conditions.
  • Large Solar Input Capacity – Supports high-capacity solar arrays for greater energy production.
  • Smart Load Management – Prioritizes solar energy to reduce grid electricity usage.
  • Fast Power Switching – Provides smooth transition between power sources to keep devices running.
  • Weather-Resistant Design – IP54 protection safeguards against dust and water splashes.
  • Smart Monitoring Capability – Supports WiFi, RS232, RS485, and CAN communication for remote monitoring.
  • Parallel Operation – Multiple units can be connected to support larger solar installations.

Technical Specifications

Specification Details
Brand Itel
Model 12kW Pro IP54 Hybrid
Inverter Type Hybrid (Solar + Battery + Grid)
Rated Output Power 12,000 W
Maximum Surge Power Up to 24,000 W
PV Input Voltage Range 150V – 500V
MPPT Voltage Range 150V – 450V
Maximum PV Input Power Up to 15,000 W
MPPT Trackers 2 Independent MPPTs
Battery Voltage 48V
Battery Compatibility Lithium / Lead-Acid / Gel
AC Output Voltage 230V ± 5%
Output Frequency 50Hz / 60Hz
Maximum Efficiency Up to 96%
Maximum Charging Current Up to 180A
Protection Rating IP54 (Dust & Splash Resistant)
Cooling System Intelligent Fan Cooling
Communication Ports RS232 / RS485 / CAN / Optional WiFi
Display LCD Screen with LED Indicators
Operating Temperature -10°C to +55°C
Dimensions Approx. 560 × 420 × 160 mm
Weight Approx. 25 – 30 kg

Built-In Protection Features

To ensure reliable and safe performance, the inverter includes multiple protection systems:

  • Overload Protection
  • Short Circuit Protection
  • Over-Temperature Protection
  • Battery Overcharge Protection
  • Reverse Polarity Protection
  • Smart Battery Management Support

Ideal Applications

The Itel 12kW Pro Hybrid Inverter is suitable for:

  • Large Residential Solar Systems
  • Commercial Buildings and Offices
  • Shops, Clinics, and Small Industries
  • Backup Power Systems
  • Off-Grid and Hybrid Solar Installations
