ITEL 6.6KW IP66 PREMIUM MODEL 10KW OUTPUT WITH GRID

ITEL 6.6KW IP66 PREMIUM MODEL 10KW OUTPUT WITH GRID

The Itel 6.6kW IP66 Sparta Series Hybrid Solar Inverter is a powerful and reliable solar energy solution designed for modern residential and small commercial installations. Built with advanced hybrid technology, this inverter intelligently combines solar panels, battery storage, and utility grid power to ensure stable and uninterrupted electricity.

The Sparta Series is engineered with a durable IP66-rated enclosure, providing excellent protection against dust, rain, and harsh outdoor conditions. With intelligent MPPT solar tracking and efficient power conversion, it maximizes solar energy production while delivering consistent performance for household and business appliances.

This inverter is an ideal choice for users seeking a high-efficiency, weather-resistant, and smart solar power management system.

Categories: , Brand:

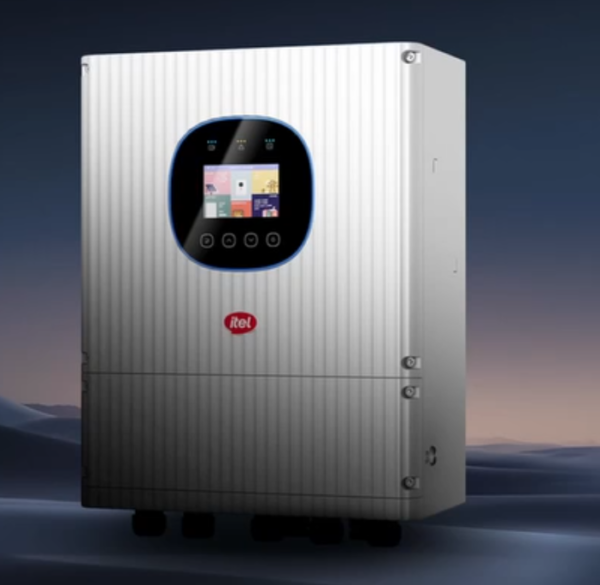

Itel 6.6kW IP66 Sparta Series Hybrid Solar Inverter



Key Features

  • 6.6kW High Output Capacity – Suitable for medium to large homes and small businesses.
  • Sparta Series Advanced Design – Built for durability and long-term performance.
  • Hybrid Energy Integration – Supports solar panels, battery storage, and grid power.
  • IP66 Weather Protection – Fully sealed design protects against dust, rain, and outdoor environments.
  • Dual MPPT Solar Tracking – Optimizes solar energy harvesting even under varying sunlight conditions.
  • Wide PV Input Range – Supports large solar panel arrays for higher energy production.
  • Smart Battery Management – Compatible with 48V lithium, gel, and lead-acid batteries.
  • Remote Monitoring Capability – Supports WiFi, RS232, RS485, and CAN communication.
  • High Efficiency Power Conversion – Designed to minimize energy loss and improve system performance.
  • Parallel Operation Support – Multiple units can be connected for larger solar systems.

WARRANTY:

6 Year Complete Replacement Warranty and 6 Service Warranty

Technical Specifications

Specification Details
Brand Itel
Series Sparta Series
Model 6.6kW IP66 Hybrid
Inverter Type Hybrid (Solar + Battery + Grid)
Rated Output Power 6,600 W
Maximum Surge Power Up to 13,200 W
Maximum PV Input Power Up to 8,000 W
PV Input Voltage Range 120V – 500V
MPPT Voltage Range 120V – 450V
MPPT Trackers 2 Independent MPPTs
Battery Voltage 48V
Battery Compatibility Lithium / Lead-Acid / Gel
AC Output Voltage 230V ± 5%
Output Frequency 50Hz / 60Hz
Maximum Efficiency Up to 96%
Maximum Charging Current Up to 130A
Protection Rating IP66 (Fully Dustproof & Water Resistant)
Cooling System Intelligent Fan Cooling
Communication Ports RS232 / RS485 / CAN / Optional WiFi
Display LCD Display with LED Indicators
Operating Temperature -10°C to +55°C
Dimensions Approx. 460 × 360 × 160 mm
Weight Approx. 18 – 21 kg

Safety & Protection Features

The Itel Sparta Series inverter includes several protection systems to ensure safe and reliable operation:

  • Overload Protection
  • Short Circuit Protection
  • Over Temperature Protection
  • Battery Overcharge Protection
  • Reverse Polarity Protection
  • Smart Battery Management System (BMS) Support

Ideal Applications

The Itel 6.6kW IP66 Sparta Series Hybrid Inverter is suitable for:

  • Residential Solar Systems
  • Villas and Large Homes
  • Offices and Small Commercial Buildings
  • Shops and Clinics
  • Hybrid and Off-Grid Solar Installations
